Green Dade Outdoor Fitment Guide
Toro TimeCutter 50" Deck Rebuild Kit Guide – SS, MX, SW & Z-Series
Toro TimeCutter 50-inch mowers can use different spindle, belt and pulley configurations depending on the mower series and deck generation. A 50-inch cutting width alone is not enough to identify the correct rebuild kit.
This guide compares Green Dade 80-DK-022, 80-DK-023, 80-DK-024, 80-DK-025 and 80-DK-025-A and separates them into the two main deck families represented by these kits: the SS / MX / SW platform and the older Z-Series platform.
Important:
Do not order solely because your mower says Toro TimeCutter 50".
The SS/MX/SW kits and Z-Series kits use different spindle families
and different belt configurations.
Two Main Toro TimeCutter 50" Deck Families
SS / MX / SW Platform
Uses three 80-12-033-N spindle assemblies and the 80-90-959 deck belt.
Green Dade kits: 80-DK-022, 023 and 024.
Z-Series Platform
Uses three 80-12-039 spindle assemblies and requires two different belts.
Green Dade kits: 80-DK-025 and 025-A.
Same Blade Size Does Not Mean Same Deck
Both families can use similar 17-1/2" blade configurations, so blades alone should not be used to determine deck family.
How to Identify the Correct Kit
1
Confirm the mower series.
Check whether your mower is an SS, MX, SW or older Z-Series TimeCutter.
2
Find the complete Toro model number.
Numbers such as 74630, 74731 or 74376 can be more useful than
the marketing model name alone.
3
Compare spindle OEM numbers.
The SS/MX/SW platform uses a different spindle family from the Z-Series platform.
4
Check the belt configuration.
SS/MX/SW kits use one primary deck belt in this family,
while 80-DK-025 and 025-A include two different belts.
5
Choose the repair level you need.
Some kits include blades, some include idlers, and the most complete versions include both.
Family 1: Toro TimeCutter SS / MX / SW 50" Deck
80-DK-022 / 80-DK-023 / 80-DK-024
Three related kits for the same basic SS, MX and SW deck platform.
These kits share the same core spindle and belt family. They use three 80-12-033-N spindle assemblies, replacing Toro references including 117-0751, 117-7267, 117-7268, 117-7439, 120-6234 and 121-9107.
The deck belt is Green Dade 80-90-959, approximately 1/2" × 141.5", replacing Toro 119-8820 / 120-3892.
What changes between 022, 023 and 024 is not the basic platform, but which additional wear components are included.
Compare 80-DK-022, 023 & 024
| Component | 80-DK-022 | 80-DK-023 | 80-DK-024 |
|---|---|---|---|
| 3 spindle assemblies | Included | Included | Included |
| 80-90-959 deck belt | Included | Included | Included |
| 3 blades | — | Included | Included |
| 3 flat idler pulleys | Included | — | Included |
| Best choice when | You need spindles, belt and idlers but not blades | You need spindles, belt and blades but not idlers | You want the most complete package for this platform |
Important difference:
80-DK-022 and 80-DK-023 are not simply a smaller and larger version
of the same kit. The 022 includes idler pulleys but no blades,
while the 023 includes blades but no idler pulleys.
80-DK-024 combines both.
SS / MX / SW Compatible Model Families
TimeCutter SS
Common compatible models include SS5000, SS5035 and SS5060.
TimeCutter MX
Common compatible models include MX5000, MX5025, MX5050 and MX5060.
TimeCutter SW
Common compatible models include SW5000 and SWX5050.
Compatible model numbers listed across these products include: 74630, 74631, 74632, 74635, 74637, 74638, 74641, 74643, 74730, 74731, 74732, 74770, 74771, 74775, 74776, 74790, 74797 and 74798. Always verify the individual product listing before ordering.
Family 2: Toro TimeCutter Z-Series 50" Deck
80-DK-025 / 80-DK-025-A
Separate Z-Series platform with different spindles and two-belt configuration.
These kits use three 80-12-039 spindle assemblies. OEM references include 117-1192, 100-1048, 62-3661, 80-4380 and 80-4360.
Unlike the SS/MX/SW family above, this configuration includes two different belts:
80-90-362 — approximately 140-7/64" × 1/2", replacing Toro 110-6892.
80-90-381 — approximately 62-1/2" × 1/2", cogged belt replacing Toro 110-6774.
Both 025 versions include the spindle, blade and belt core. 80-DK-025-A adds three flat idler pulleys.
Compare 80-DK-025 & 80-DK-025-A
| Component | 80-DK-025 | 80-DK-025-A |
|---|---|---|
| 3 spindle assemblies | Included | Included |
| 3 blades | Included | Included |
| 110-6892-style deck belt | Included | Included |
| 110-6774-style cogged belt | Included | Included |
| 3 flat idler pulleys | — | Included |
| Best choice when | Spindles, blades and both belts need replacement | You also want to replace the three idler pulleys |
Z-Series Models Covered by These Kits
The Z-Series family represented here includes applications such as Z5000, Z5020, Z5030, Z5035, Z5040 and Z5060. 80-DK-025-A also lists selected Z4200, Z4220 and Z4235 applications.
Do not use the model name alone:
even within the TimeCutter family, model years and deck configurations can vary.
Confirm your complete mower model number and OEM references before purchasing.
SS / MX / SW vs Z-Series
| Feature | SS / MX / SW | Z-Series |
|---|---|---|
| Green Dade kits | 80-DK-022 / 023 / 024 | 80-DK-025 / 025-A |
| Spindle | 80-12-033-N | 80-12-039 |
| Common spindle OEM family | 117-0751 / 117-7267 / 121-9107 | 117-1192 / 100-1048 / 62-3661 |
| Primary belt | 119-8820 / 120-3892 | 110-6892 |
| Second belt | Not part of these kits | 110-6774 cogged belt |
| Blade quantity | 3 when included | 3 |
Which Toro TimeCutter 50" Kit Should You Choose?
A
SS/MX/SW: need spindles + belt + idlers, but your blades are still good.
Choose 80-DK-022.
B
SS/MX/SW: need spindles + belt + blades, but not idlers.
Choose 80-DK-023.
C
SS/MX/SW: want spindles + blades + belt + idlers.
Choose the more complete 80-DK-024.
D
Z-Series: need spindles + blades + both belts.
Choose 80-DK-025.
E
Z-Series: also want to replace the three idler pulleys.
Choose 80-DK-025-A.
Common Signs Your TimeCutter Deck Needs Service
Uneven Cutting
Worn blades, spindle bearings or deck components can contribute to an uneven cutting pattern.
Spindle Noise
Grinding, rumbling or excessive play around the blade spindle may indicate bearing or spindle wear.
Belt Problems
Cracks, glazing, fraying or frequent belt slipping are common reasons to inspect the full drive system.
Idler Noise
Rough or noisy idler pulley bearings can cause belt tracking and deck-drive problems.
Deck Vibration
Bent blades, worn spindles or pulley problems can contribute to excessive deck vibration.
Multiple Worn Parts
When several wear components need service at once, a rebuild kit can simplify ordering and installation.
Shop Toro TimeCutter 50" Deck Rebuild Kits

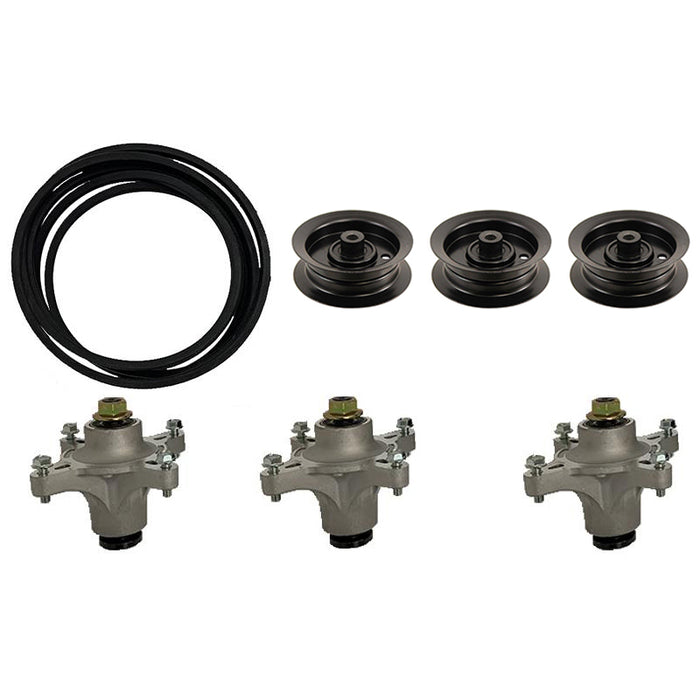

50" Deck Rebuild Kit for Toro TimeCutter Exmark Quest SS5000 MX5000 119-8820
SS/MX/SW package with three spindles, deck belt and three idler pulleys. Blades are not included.
$74.26
In stock
Check Fitment & Shop

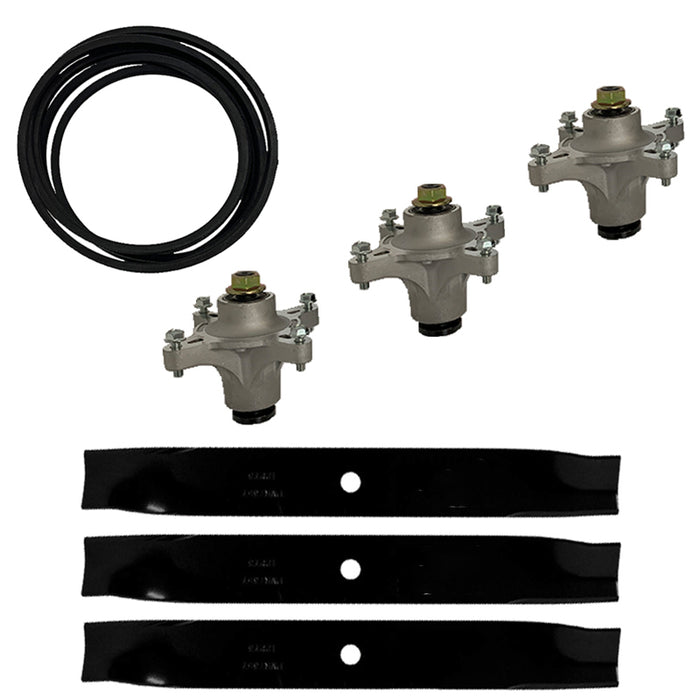

50" Deck Rebuild Kit for Toro TimeCutter Exmark Quest SS5000 MX5000 119-8820
SS/MX/SW package with three spindles, three blades and deck belt. Idler pulleys are not included.
$70.98
In stock
Check Fitment & Shop

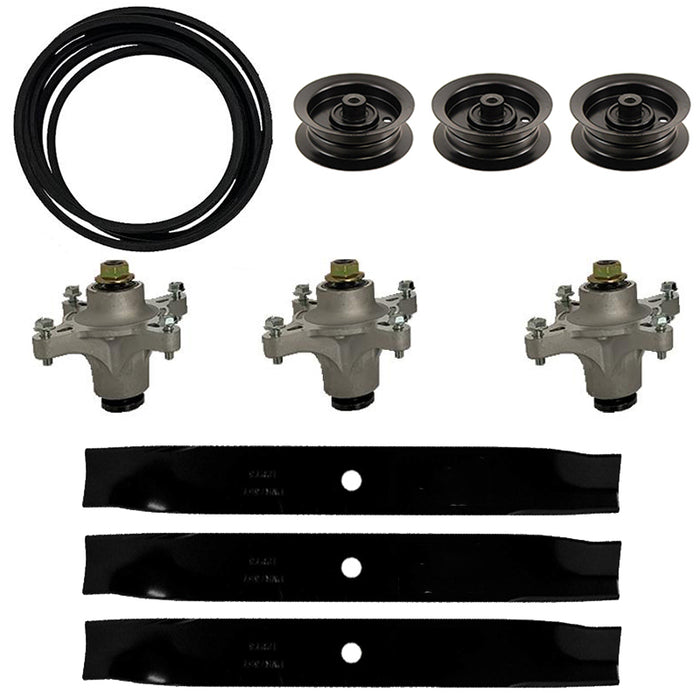

50" Complete Deck Rebuild Kit for Toro TimeCutter Exmark Quest SS5000 MX5000
Most complete SS/MX/SW package: three spindles, three blades, deck belt and three idler pulleys.
$87.17
In stock
Check Fitment & Shop

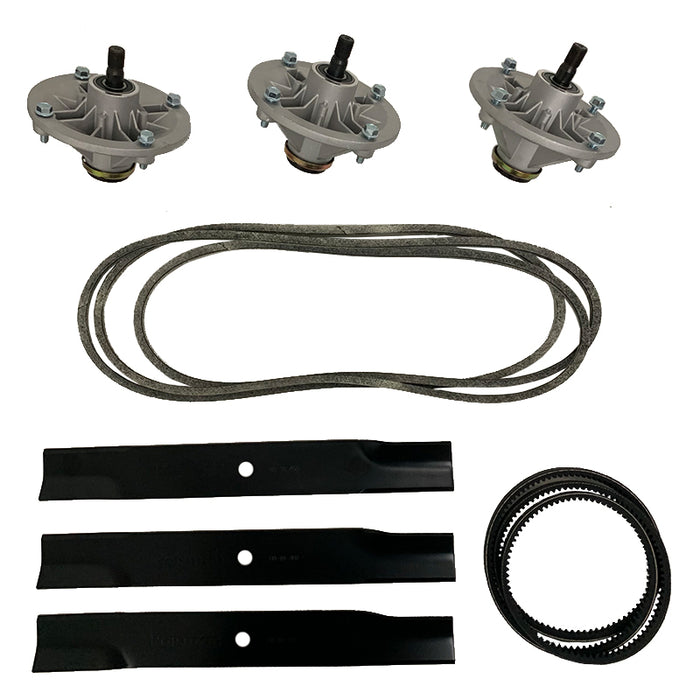

50" Deck Kit for Toro TimeCutter Z5000 Z5035 Z5020 Z5060 Z5040
Z-Series package with three spindles, three blades, one deck belt and one cogged belt.
$88.00
Currently unavailable
Check Fitment & Shop

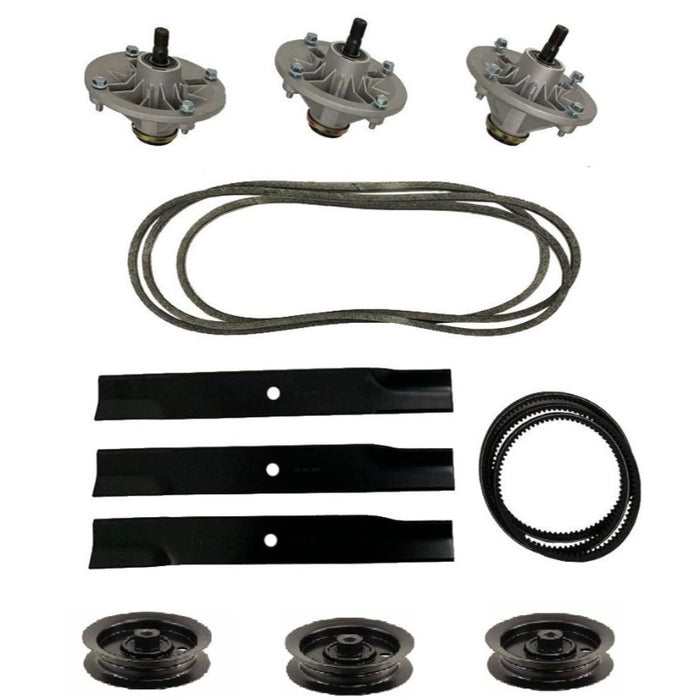

50" Deck Rebuild Kit for Toro TimeCutter Z5000 Z5035 Z5020 Z5060 Z4200
Most complete Z-Series package: three spindles, three blades, two belts and three idler pulleys.
$115.00
Currently unavailable
Check Fitment & Shop
Useful Toro OEM Numbers to Compare
SS / MX / SW spindle family
117-0751
117-7267
117-7268
117-7439
120-6234
121-9107
139-3214
117-0751
117-7267
117-7268
117-7439
120-6234
121-9107
139-3214
SS / MX / SW deck belt
119-8820
120-3892
119-8820
120-3892
Common blade references
110-6837-03
112-9759-03
115-5059-03
110-6837-03
112-9759-03
115-5059-03
Flat idler pulley
106-2175
132-9420
106-2175
132-9420
Z-Series spindle family
117-1192
100-1048
62-3661
80-4380
80-4360
117-1192
100-1048
62-3661
80-4380
80-4360
Z-Series deck belt
110-6892
110-6892
Z-Series cogged belt
110-6774
110-6774
Frequently Asked Questions
Do all Toro TimeCutter 50" mowers use the same rebuild kit?
No. Toro used different spindle, belt and pulley configurations across TimeCutter families and model years. Confirm your model and OEM references before ordering.
What is the difference between 80-DK-022 and 80-DK-023?
Both use the same SS/MX/SW spindle and belt platform. 80-DK-022 includes three idler pulleys but does not include blades. 80-DK-023 includes three blades but does not include the idler pulleys.
What is the difference between 80-DK-023 and 80-DK-024?
Both include three spindles, three blades and the deck belt. 80-DK-024 additionally includes three flat idler pulleys.
What is the most complete SS/MX/SW kit?
Among these products, 80-DK-024 is the most complete package because it includes the three spindles, three blades, deck belt and three idler pulleys.
What is the difference between 80-DK-025 and 80-DK-025-A?
Both are based on the Z-Series platform and include three spindles, three blades and two belts. 80-DK-025-A additionally includes three flat idler pulleys.
Why do the Z-Series kits include two belts?
The Z-Series configuration represented by these products uses both a 110-6892-style deck belt and a separate 110-6774-style cogged belt.
Can I identify the correct kit only by blade size?
No. Similar blade dimensions can appear across different deck configurations. Use your mower model, spindle OEM numbers and belt references as additional fitment checks.
Does 80-DK-025-A fit Z4200, Z4220 and Z4235 models?
Those models are listed among the compatible applications for 80-DK-025-A. Always verify the complete mower model and original part numbers because deck configurations can vary.
How do I find my Toro model number?
Check the mower identification label and your parts or owner's manual. The complete model number is generally more reliable for parts identification than the TimeCutter marketing name alone.
Still Not Sure Which Toro TimeCutter 50" Kit You Need?
Confirm your mower series and complete model number, then compare the spindle and belt OEM references before ordering.
