Green Dade Outdoor Fitment Guide
Craftsman LT1000 & LT2000 42" Deck Rebuild Kits & Parts Guide
Craftsman LT1000 and LT2000 lawn tractors were produced with more than one 42-inch mower deck configuration. The mower name alone is therefore not enough to select a rebuild kit. Spindle mounting pattern, belt length, OEM numbers, deck manufacturer and the parts already installed on your mower should all be checked before ordering.
This guide explains the main differences between Green Dade Outdoor rebuild-kit configurations and helps you understand why several kits can share the same spindles, blades and pulleys while using different belts or additional idler pulleys.
Important:
Do not order a deck rebuild kit only because the mower says
LT1000 or LT2000.
Craftsman used different deck platforms and component combinations.
Always verify your mower model number, spindle mounting pattern and OEM
references.
Why LT1000 and LT2000 Fitment Can Be Confusing
The LT1000 and LT2000 names cover many Craftsman lawn tractors produced over multiple years. Some use AYP-style deck components also found on Husqvarna and Poulan equipment, while other Craftsman models use MTD-style deck hardware.
That means two tractors with a similar Craftsman model name may use completely different spindles, belts, pulleys and blades.
AYP-Style 3-Bolt Spindle
Many LT1000/LTX1000 applications in this guide use the 130794 / 532130794 spindle family with a 3-bolt mounting pattern.
Different Belts, Similar Hardware
A mower can use the same spindle, blade and spindle-pulley family while requiring a different deck belt. Belt selection can therefore change the final fitment of the rebuild configuration.
MTD-Style LT2000 Applications
Some Craftsman LT2000 applications use MTD-style parts and 4-bolt spindles. These are not the same rebuild configuration as the 130794 3-bolt AYP-style kits.
Before You Buy: Identify Your Deck First
1
Find the full mower model number.
Craftsman model numbers often begin with numbers such as 917 or 247.
Use the complete number whenever possible, not only LT1000 or LT2000.
2
Check the spindle mounting pattern.
The Green Dade 80-DK-001, 80-DK-002 and 80-DK-000 family uses the
130794-style 3-bolt spindle. The 80-DK-011 uses a different
MTD/Cub Cadet-style 4-bolt spindle.
3
Identify the deck belt or its OEM number.
This is especially important because the same basic spindle/blade
configuration can be paired with different belts.
4
Check whether your idler pulleys also need replacement.
Some Green Dade kits include the spindle-related components only,
while more complete configurations add the belt and/or idler pulleys.
Understanding Green Dade 80-DK-001, 80-DK-002 and 80-DK-000
These three products share much of the same basic 42-inch AYP-style deck hardware, but they should not be understood simply as three unrelated fitment choices. Their main differences are the included belt and the level of pulley replacement.
The key idea:
first confirm that the spindle, blade and spindle-pulley family matches
your deck. Then confirm the correct belt. Finally decide whether the
idler pulleys also need to be replaced.
| Green Dade Product | Core Hardware | Belt | Idler Pulleys | Best Way to Think About It |
|---|---|---|---|---|
| 80-DK-001 |
2 spindle assemblies 2 mulching blades 2 spindle pulleys |
No belt included | Not included | Hardware-focused rebuild configuration. Useful when the deck uses this spindle/blade/pulley family but requires a belt selected separately for the specific mower. |
| 80-DK-002 |
2 spindle assemblies 2 mulching blades 2 spindle pulleys |
Includes 80-90-333 144959 / 532144959 family approx. 1/2" × 95-1/2" |
Not included | Same basic deck hardware with the 144959-family deck belt already included. |
| 80-DK-000 |
2 spindle assemblies 2 mulching blades 2 spindle pulleys |
Includes 80-90-333 144959 / 532144959 family |
Includes additional idler pulleys replacing 131494 and 173437 families | More complete rebuild configuration for compatible decks when the idler pulleys also need replacement. |
Why 80-DK-001 Can Fit More Applications When Paired With the Correct Belt
One advantage of 80-DK-001 is that it does not force a specific deck belt into the package. Its spindle, blade and spindle-pulley components can be used on compatible deck configurations while the correct belt is selected separately.
For example, Green Dade lists the 80-90-355 belt as an option for the Poulan HD145H42F when used with the 80-DK-001 hardware. The 80-90-355 replaces OEM numbers including 144200, 532144200, 419271 and 532419271 and measures approximately 1/2" × 88".
By contrast, 80-DK-002 includes Green Dade belt 80-90-333, which belongs to the 144959 / 532144959 family and is approximately 1/2" × 95-1/2".
Do not substitute belts based only on mower name.
An 88-inch 144200-family belt and a 95-1/2-inch 144959-family belt are not
interchangeable merely because both may appear in Craftsman/AYP 42-inch
applications. Match the belt to the specific mower/deck configuration.
Common 80-90-355 Belt Applications
Green Dade lists the 80-90-355 belt for selected AYP, Roper, Sears, Craftsman and Husqvarna applications, including several models that share the same general AYP-style deck architecture.
Selected Husqvarna models
LR12, LTH120, LTH130, LT120, LT1538, YTH150 and YTH180.
LR12, LTH120, LTH130, LT120, LT1538, YTH150 and YTH180.
Selected Craftsman / Sears models
917.270630, 917.271080, 917.271090, 917.252540, 917.270722, 917.252531, 917.256552, 917.270514, 917.258524, 917.259572, 917.256544, 917.270810, 917.259546, 917.271013, 917.270660, 917.259531, 917.259556, 917.270781 and 917.271121.
917.270630, 917.271080, 917.271090, 917.252540, 917.270722, 917.252531, 917.256552, 917.270514, 917.258524, 917.259572, 917.256544, 917.270810, 917.259546, 917.271013, 917.270660, 917.259531, 917.259556, 917.270781 and 917.271121.
Common OEM references
126520X, 144200, 419271, 532144200, 532419271, 105380X, 121979X and 131290.
126520X, 144200, 419271, 532144200, 532419271, 105380X, 121979X and 131290.
This list is a reference, not a substitute for checking the mower's complete model number and original part numbers.
What About Craftsman LT2000 Models With MTD-Style Decks?
Not every Craftsman LT2000 belongs to the 130794 AYP-style 3-bolt family. Green Dade product 80-DK-011, for example, covers selected Craftsman LT2000, LT1500 and T130 applications that use MTD/Cub Cadet-style components.
That configuration uses a 4-bolt spindle, different blade references, a different belt family and different idler pulleys. It should therefore be treated as a separate deck platform rather than as another completeness level of 80-DK-001/002/000.
| Feature | AYP-Style 80-DK-001 / 002 / 000 Family | MTD-Style 80-DK-011 |
|---|---|---|
| Spindle mounting | 3-bolt | 4-bolt |
| Common spindle family | 130794 / 532130794 | 918-04822 family |
| Common belt family | Varies by mower; examples include 144959 or 144200 | 754-04060 / 954-04060 family |
| Platform | AYP / Sears / Craftsman / Husqvarna / Poulan style | MTD / Cub Cadet style |
Common Symptoms That May Point to Worn Deck Components
Uneven Cutting
Worn spindle bearings, damaged blades or deck components with excessive play can contribute to an uneven cut.
Excessive Vibration
Bent blades, worn spindles, damaged pulleys or incorrect belt routing can cause abnormal vibration.
Belt Slipping or Coming Off
A worn belt, damaged pulley, incorrect belt length or alignment issue can cause repeated belt problems.
Grinding or Bearing Noise
Rough or noisy spindle bearings can indicate that a spindle assembly is approaching the end of its service life.
Loose or Wobbling Pulleys
Pulley wear or spindle damage can create movement that affects belt tracking and deck performance.
Multiple Worn Parts at Once
If several components are already worn, a rebuild kit can be more practical than replacing each part separately.
Which Green Dade Configuration Should I Choose?
A
Your deck uses the 130794-style 3-bolt spindle, but you need to choose the belt separately.
Start with 80-DK-001 and verify the correct belt for
your exact mower.
B
Your compatible deck uses the 144959 / 532144959 belt family.
80-DK-002 includes the core spindle/blade/pulley
hardware plus that belt.
C
You need the same 144959-family configuration plus additional idler pulleys.
80-DK-000 is the more complete option for compatible
decks.
D
Your LT2000 uses a 4-bolt MTD-style spindle.
Do not use the 130794 family. Review 80-DK-011 and
confirm the complete model/OEM references.
Shop the Relevant Green Dade Parts

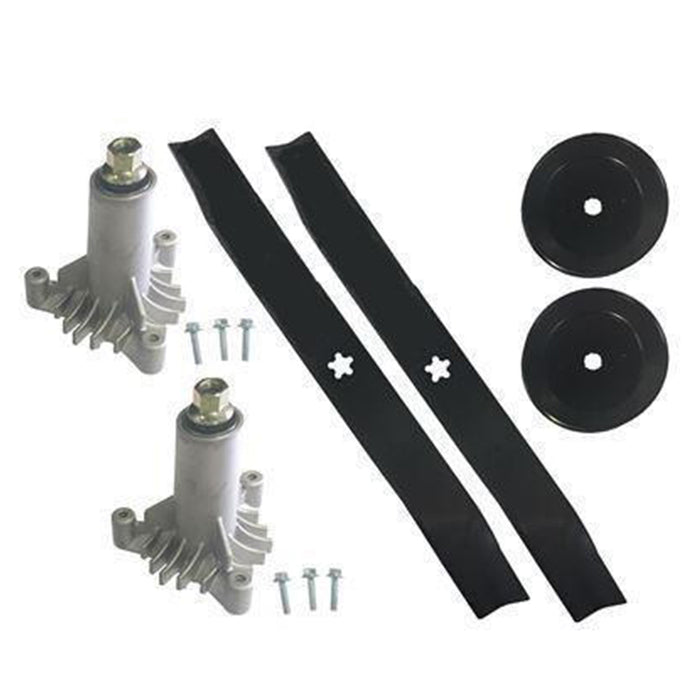

42" 3-Bolt Deck Rebuild Kit Craftsman LT1000 LT2000 AYP Husqvarna Poulan
3-bolt spindle/blade/spindle-pulley configuration without a deck belt, allowing the correct belt to be selected separately.
$43.00
In stock
Check Fitment & Shop

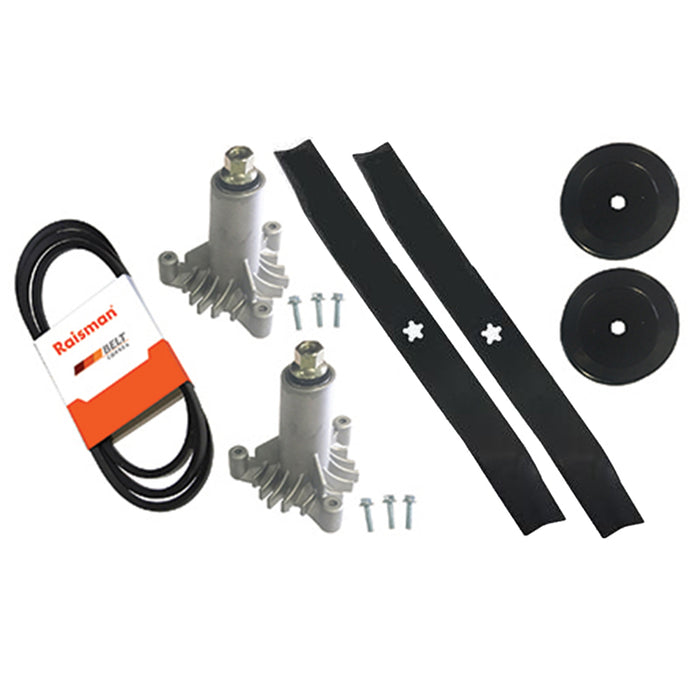

42" Deck Rebuild Kit Craftsman LT1000 LT2000 LTX1000 DLT3000 Poulan
Core 3-bolt spindle/blade/spindle-pulley configuration with 80-90-333 / 144959-family belt included.
$49.00
In stock
Check Fitment & Shop

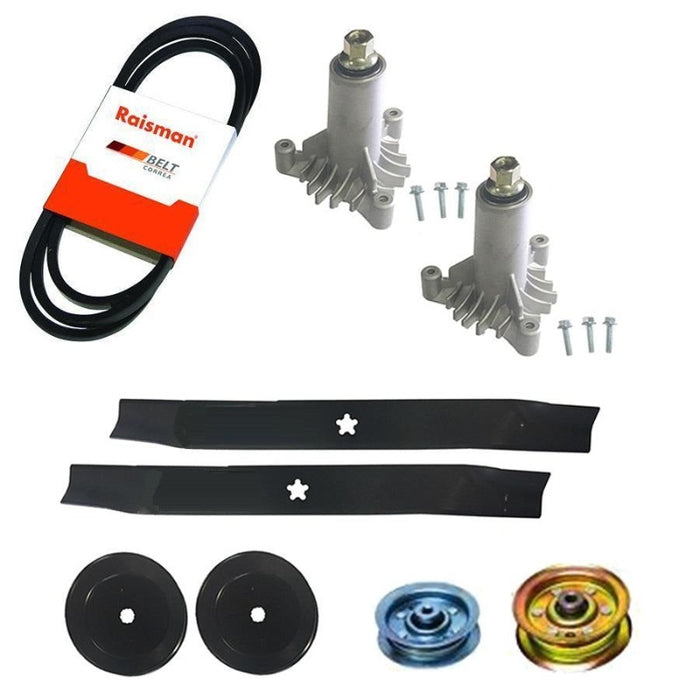

42" Complete Deck Rebuild Kit Craftsman LT1000 LT2000 LTX1000 DLT3000 Poulan Ryobi
More complete 144959-family configuration with additional idler pulleys for compatible mower decks.
$59.00
In stock
Check Fitment & Shop

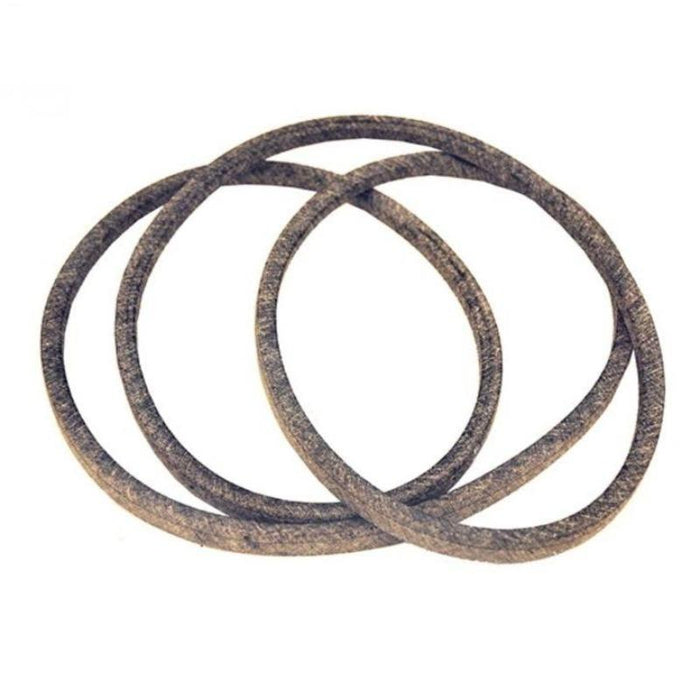

1/2"x88" AYP Deck Belt 532144200 532419271 144200 419271 126520X 4L880
1/2" × 88" belt for selected 144200 / 532144200 / 419271-family applications. Verify your mower before pairing it with 80-DK-001.
$9.98
In stock
View Belt Fitment

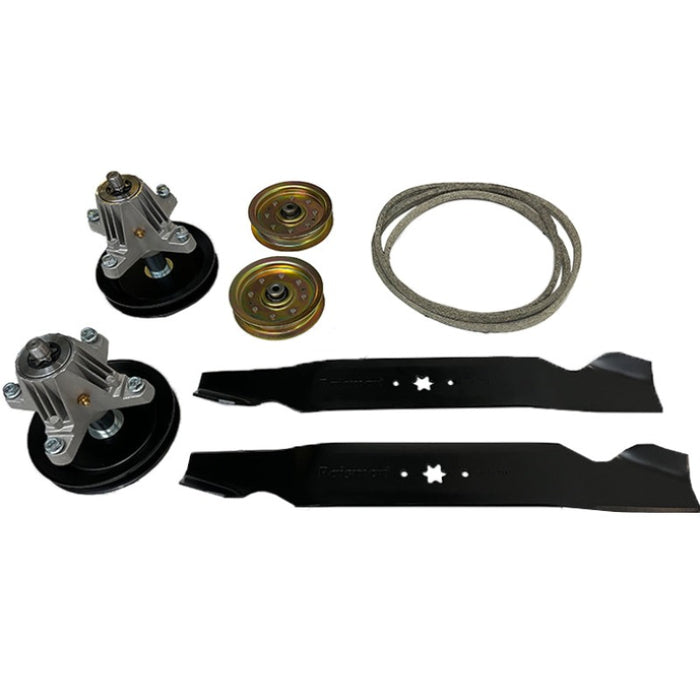

42" Deck Rebuild Kit Craftsman LT2000 Cub Cadet LTX1040 LTX1042
Separate MTD/Cub Cadet-style 4-bolt spindle configuration for selected Craftsman LT2000, LT1500 and T130 applications.
$79.00
In stock
Check 4-Bolt Fitment

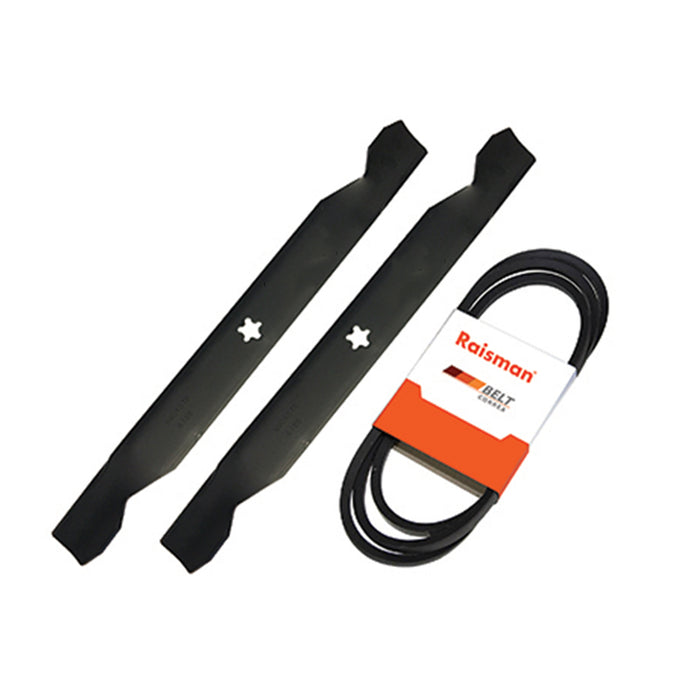

42" Mulching Blade & Belt Kit Craftsman LT1000 Husqvarna Poulan 134149 144959
Blade-and-belt option using 134149-family mulching blades and the 144959-family deck belt when a full spindle rebuild is not required.
$16.95
In stock
View Blade & Belt Kit
Useful OEM Numbers to Compare
3-bolt spindle family
130794
128774
532130794
130794
128774
532130794
Mulching blade family
134149
532134149
777134149
134149
532134149
777134149
Spindle pulley family
129861
153535
173436
532173436
129861
153535
173436
532173436
95-1/2" belt family
144959
532144959
531300766
144959
532144959
531300766
88" belt family
144200
532144200
419271
532419271
126520X
144200
532144200
419271
532419271
126520X
MTD-style 4-bolt spindle family
918-04822
918-04822A
918-04822B
618-04950
918-04822
918-04822A
918-04822B
618-04950
Frequently Asked Questions
Do all Craftsman LT1000 mowers use the same 42" deck rebuild kit?
No. LT1000 is a mower series name, not a complete parts specification. Check the full mower model number, spindle mounting pattern, belt and OEM numbers before ordering.
What is the difference between Green Dade 80-DK-001 and 80-DK-002?
Both use similar 3-bolt spindle, blade and spindle-pulley hardware. 80-DK-001 does not include a deck belt, while 80-DK-002 includes the 80-90-333 belt from the 144959 / 532144959 family.
What is the difference between 80-DK-002 and 80-DK-000?
Both include the 144959-family belt along with the core spindle, blade and spindle-pulley hardware. 80-DK-000 adds idler pulleys for a more complete deck rebuild on compatible applications.
Why does 80-DK-001 come without a belt?
The same basic hardware configuration can be used on mower applications that require different deck belts. Selling the hardware without a belt allows the correct belt to be selected for the specific mower.
Can I use belt 80-90-355 with 80-DK-001?
Green Dade specifically lists 80-90-355 as an option for the Poulan HD145H42F with the 80-DK-001 hardware. For other applications, verify the complete model number and OEM belt reference before ordering.
Are 144200 and 144959 the same belt?
No. They belong to different belt configurations. The 144200-family belt used by Green Dade 80-90-355 is approximately 88 inches long, while the 144959-family belt used by 80-90-333 is approximately 95-1/2 inches long.
How do I know whether my mower has a 3-bolt or 4-bolt spindle?
Inspect how the spindle housing attaches to the mower deck and compare the mounting pattern and OEM part number with your existing spindle. Do not rely only on the LT1000 or LT2000 name.
Does Green Dade 80-DK-011 use the same spindle as 80-DK-001?
No. 80-DK-011 is a different MTD/Cub Cadet-style configuration using a 4-bolt spindle family. 80-DK-001 belongs to the 130794-style 3-bolt AYP configuration.
Should I replace every deck component at the same time?
Not necessarily. Inspect the condition of the spindles, blades, belts and pulleys. If several parts are worn, a more complete rebuild kit may make sense. If only specific components are worn, a smaller kit or individual parts may be sufficient.
What should I do if I am not sure which kit fits?
Compare the full mower model number, existing OEM numbers, belt reference and spindle mounting pattern. You can also contact Green Dade Outdoor with this information before ordering.
Still Not Sure Which 42" Deck Configuration You Have?
Use your full mower model number and the OEM numbers from your existing spindle, belt and pulleys to confirm fitment before ordering.
